Connecting home appliances to the internet allows you to do things unimaginable in Japan!

This content is from 2013. The steps may no longer work.

logo_tkF+ObihaiItkF (Sysk Factory)They operate a company called [company name]. And tkF has formed the first partnership in Japan with Obihai Technology, a company based in Silicon Valley, USA.

Obihai is a company that is very well-known in the US, especially among IT-related media, and is a group of engineers with an innovative spirit that has never been seen before. Because it is so focused on technology, its appeal is not easily conveyed by looking at its website, but it is an interesting company with a slightly different perspective. It has already gained many users and fans throughout the United States, and its product range is stable.

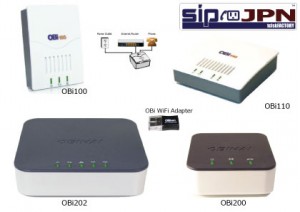

obi-series

The OBi device released by Obihai boasts numerous highly functional and attractive features. Many of these features are still unfamiliar in Japan, and explaining them inevitably becomes complex, making it difficult for users to understand. This is because it's necessary to explain these unknown features from their fundamental aspects, resulting in each explanation becoming overly descriptive. While my presentation skills are a significant factor, the biggest obstacle to releasing OBi and similar products in Japan is undoubtedly the "product description." To put it another way, "once you understand it, you'll definitely see how great it is." You'll understand why OBi has gained so many fans in the US, going beyond just a small user base.

This time, I'm going to try to explain the features of OBi, even though it will be a long explanation. I hope that it will be of some use to those who are interested in this type of system.

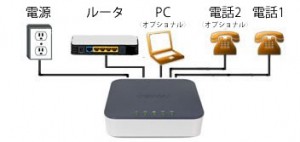

connect-obi202OBi is a device called an ATA (Analog Telephone Adapter) that allows telephones used in ordinary homes (which use telephone lines as modular jacks) to be connected to Ethernet ports used for the internet. While various manufacturers have been selling ATA devices for some time, OBi has features that set it apart from previous ATAs. Let's take a look at two of its most significant features.

bflets_index_topsmart_logoFirst, all device settings can be configured on OBi's dedicated server. This is cloud configuration. By accessing the OBi portal site and logging in, you can access the settings screen for the OBi device you are using, where you can easily configure it. For example, you just need to enter the server address, account ID, and password of the ITSP (Internet Telephone Service Provider) that is provided by various companies around the world into the appropriate fields. That's all it takes to start using internet telephony. In addition, various registrations and changes can be made very easily through a web browser.IP-Phone SMARTAnd, once you register, you can start using it immediately. Also,NTT Hikari Phone also registers as an extension.It can be used in this way. While there are still few ITSPs in Japan that offer significant cost advantages, many companies around the world provide very inexpensive and attractive services. If you want to use your phone as cheaply as possible, using these overseas ITSPs can lead to astonishing cost reductions.

The benefits of this cloud configuration extend beyond simple setup; it also mitigates issues related to protocol differences between SIP and VoIP, as well as compatibility and port compatibility between devices. Users are likely to appreciate this latter benefit more. (Of course, cloud configuration requires creating a login account and registering the OBi devices to be used, but this itself is not a particularly difficult task.)
gv-clear
The second key feature is undoubtedly how easily Google Voice can be used anywhere in the world. A regular home phone can now receive calls using a US phone number. Depending on the person, this is a huge benefit! Without any overhead or maintenance fees, you can use phone numbers across the US to make and receive calls, whether you're in Japan or anywhere else. Furthermore, there are no call charges whatsoever. It's completely free, literally unlimited! Google Voice's detailed behavior settings are also appealing; for example, you can set it to ring between 9:00 AM and 5:00 PM, but go to voicemail at other times, or to be on voicemail all day on weekends. You can also change messages for specific people or groups, and configure detailed settings for blocking or allowing calls. All of this can be managed with your Google account, and you can change all settings by logging into the site. Additionally, a free feature is provided that forwards calls to your Google Voice number to any number you choose. In other words, externally, as long as you provide your Google Voice phone number, you don't need to notify others of any changes to your own phone number. It can become your permanent primary phone number. It supports conference calls with multiple participants and allows text messaging. Voicemail data is immediately sent to email, and the message is even transcribed into text (beta version, English only). Also, as is well known with Gmail, it goes through Google's security filter, which is now considered the best in the world, so prank calls are blocked. Therefore, you can confidently make your phone number public.

...I could go on and on about it, but the fact that all these convenient services, including call charges, are completely free is truly amazing. It's something you'd never see in Japan! In America, not only small and medium-sized businesses but even large corporations are increasingly using Google Voice as their main phone number.

The second feature, although largely characteristic of Google Voice, is the incredible potential of OBi to seamlessly integrate such functionality into a regular landline phone.

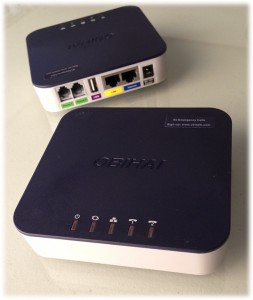

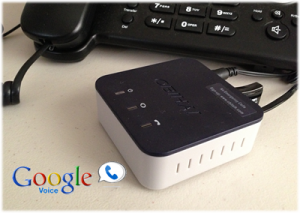

obi202-imageobi200+gv01

OBi has released several models, but of these...OBi200andOBi202These two models have particularly outstanding features.OBi200It's a compact size that fits comfortably in the palm of your hand.OBi202It's about the size of your palm. For office use, including SOHO, these models are likely to be the obvious choice. Some of the superior features that differentiate it from previous ATAs include "telephone and fax support," "wireless LAN support," and "the ability to register up to four ITSP accounts." There are also many other features such as auto-attendant and extension routing functions, but for more details...sip-JPN websiteI'll leave that for you to see, but I'll omit the details here.

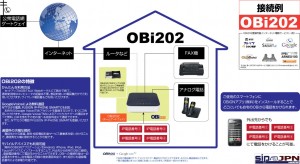

image_obi202The "telephone and fax dual-function" is exactly what it says. Internet telephones have some peculiarities in their fax communication method, and sometimes sending and receiving faxes may not work properly with incompatible ATAs.OBi200, OBi202It will support fax.

"Wireless LAN compatibility" is also a very convenient feature. While an OBi connected to a home phone would normally connect to an Ethernet port on a router, using wireless LAN eliminates placement restrictions. The phone and fax machine can be placed anywhere that can receive a wireless LAN signal.

The ability to register up to four ITSP accounts is convenient for those who want to use multiple phone numbers depending on the purpose or nature of their work.OBi200It has one telephone line port that can be connected,OBi202It has two ports, which is very convenient when you want to use both a phone and a fax machine. You can also configure which phone port each of the four registered ITSP phone numbers will ring, or you can ring both simultaneously.

catch-image3Furthermore, when you're out and about, you can use a dedicated OBi app installed on your smartphone or tablet to call your OBi device and make calls from there. There are no call charges for connecting to OBi from your smartphone or tablet. For example, when you call someone using your smartphone, they will see your home phone number instead of your mobile phone number. This can also help you save on phone bills.

OBi boasts a wide range of functions, and all of the above features are available in Japan. However, there are also problems.

Japan's telephone infrastructure is unique compared to other countries, and the technology used to display information on telephones also differs in some ways. For example, the so-called "caller ID" system, which displays the caller's phone number on the phone, uses a unique communication encryption procedure. This caller ID function is extremely important and can now be considered an essential feature, but unfortunately, OBi does not support Japanese caller ID.

It's extremely inconvenient not being able to see the caller's phone number when they call. However, the reality is that, not just with OBi, but with the vast majority of ATAs released on the market, only a very small number support Japanese caller ID, and most do not. A major reason for this is that the general market in Japan is still immature, so there is little need and no need to adapt to its specific characteristics. In a sense, this is unavoidable.

However, nothing would get started if we just kept saying that. As a partner company and also a fan of OBi, I was introduced to engineers through the Obihai representative and made numerous requests to them.

I've written about this in previous blog posts, but I contacted Obihai by sending them a Japanese telephone via international mail. This proved successful, and they agreed to develop and improve the system to support Japanese caller ID.

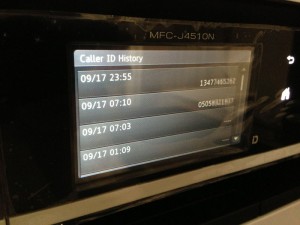

brotherprtIn a previous blog post, I mentioned the issue of garbled characters, but there has been further progress since then. Currently, with the exception of some Japanese manufacturers' telephones, caller ID is being displayed correctly. The Brother fax printer I use, a model released this year, also displays caller ID without any problems, making it a perfectly functional international fax machine.

We're almost there. In the meantime, a new OBI business opportunity has also emerged in Brazil. I want to keep pushing forward.

By the way, the productThe banner in the upper right corner of the blog is "tkF BASEMENT".You can purchase it from here.
