Are images displaying incorrectly in Google Chrome? – Check your hardware acceleration settings!

This content is from 2014. The steps may no longer work.

Image converted using ifftoany
While HTML5 and CSS3 have made incredibly diverse expressions possible, some elements require different rendering styles or simply don't function correctly in different browsers. Therefore, when creating a website, it's necessary to check how it displays on various browsers.

When I create websites, I always try to check how they display on as many operating systems and browsers as possible. While there's often talk about how tedious CSS3 coding is for Internet Explorer compatibility, this time I'll be discussing something a little different: solutions for when Chrome's image cache isn't working correctly.

Personally, my main browser is Chrome, but previouslyGoogle Chrome is slow to start! Something's wrong! - How to completely clear Chrome's cacheAs I wrote in [previous article], the Chrome browser has some rather unique quirks.

Previously, while I was creating a website, I changed the background image (background: url('*/xyz.jpg')) in the CSS code, and when I checked it in various browsers, it didn't reflect in Chrome. I thought it might be a cache issue, so I manually cleared the cache, but the image remained the same. Restarting the browser didn't change anything either. ...Why? So, in the upper right corner of the Chrome browser, Settings (three lines)While looking around at various things, I discovered something interesting: hardware acceleration settings.

Hardware acceleration allows applications to continue processing in the background even after the browser is closed. This is especially true for Chrome on Mac.
It seems that when hardware acceleration is enabled, it persistently references data remaining on the graphics card. Turning this off temporarily allowed the changed background image to display correctly (this is based on Mavericks version 2014.8).
The method is as follows.


1. In the upper right corner of the Chrome browser, Settings (three lines) → Settings

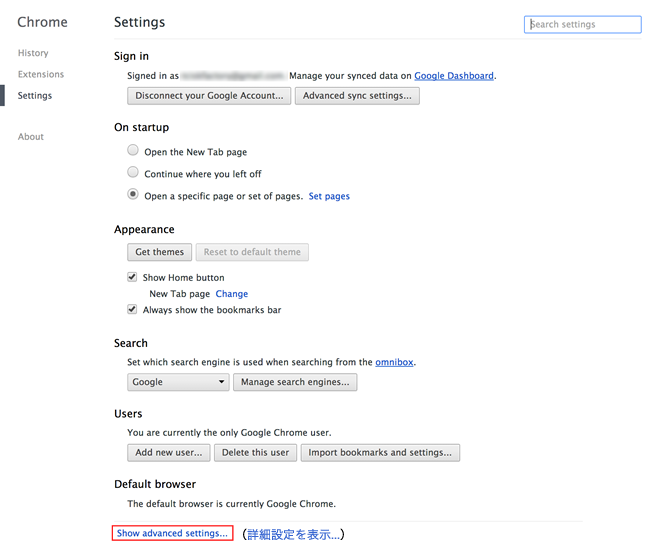

Screen Shot 2014-10-14 at 10.45.53 AM
2. Show advanced settings Click

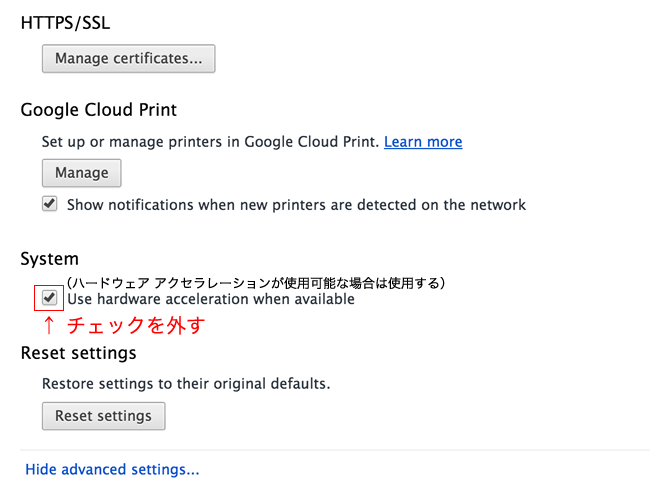

Screen Shot 2014-10-14 at 10.46.19 AM3. system の Use hardware acceleration if available. Uncheck the checkbox.

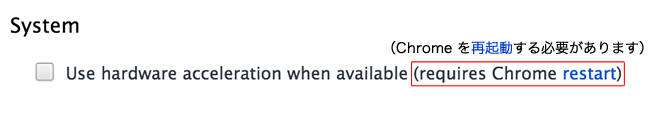

Screen Shot 2014-10-14 at 10.57.15 AM.fw4. restart Click


5. When you access the site again, the image will have been changed back to the original. Once you have finished checking, simply uncheck the box in step 3.


This can also be used to fix display problems caused by Flash (Adobe®).

These days, it's less common to create videos using Flash. However, it's also true that many existing websites still use this legacy technology.
If images aren't displaying correctly, you might want to try this.
